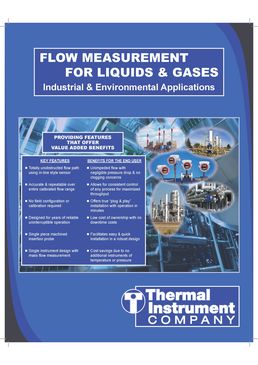

Extrait du catalogue Catalogue THERMAL INSTRUMENT

FLOW MEASUREMENT FOR LIQUIDS & GASES Industrial & Environmental Applications PROVIDING FEATURES THAT OFFER VALUE ADDED BENEFITS KEY FEATURES BENEFITS FOR THE END USER n Totally unobstructed flow path using in-line style sensor n Unimpeded flow with negligible pressure drop & no clogging concerns n Accurate & repeatable over entire calibrated flow range n Allows for consistent control of any process for maximized throughput n No field configuration or calibration required n Offers true “plug & play” installation with operation in minutes n Designed for years of reliable uninterruptible operation n Low cost of ownership with no downtime costs n Single piece machined insertion probe n Facilitates easy & quick installation in a robust design n Single instrument design with mass flow measurement n Cost savings due to no additional instruments of temperature or pressure Thermal Instrument COMPANY THERMAL MASS FLOW TECHNOLOGY There are two RTD sensors: one is self-heated and the other one measures the media temperature. The pair comprise the sensing section and mount either in an insertion probe or an in-line flow design. When any thermally conductive liquid or gas media flows past the heated RTD the molecules of that media carry heat away from the surface, and the sensor cools down as it dissipates energy. The driving circuit of that heated sensor replenishes the lost energy by heating it until it is a constant temperature difference above the second RTD sensor. The electrical current required to maintain this constant temperature differential is directly proportional to the mass flow rate. PLUG & PLAY TRANSMITTER DESIGNS n Direct Measurement of Mass Flow on Liquids & Gases n Flow Transmitter or Switch design n Various Signal Outputs for Rate & Totalizer n HART Communications n Highly Visible LED Readout INSERTION PROBE DESIGNS n Various Mounting Connections n Single Piece & Twin Tip Probe n Unique Sensing Array with Dual Redundancy n Wide Dynamic Turn Down Ratio 100:1+ n Low Flow Sensitivity for Leak Detection IN-LINE FLOW STYLE SENSORS n Completely Unobstructed Flow Path n Various Tube & Pipe Finishes n Multiple Connections (ANSI Flange, VCO, VCR) n Sanitary & Ultra High Pure Styles SOME OF THE MANY LIQUIDS & GASES n Diesel Fuel n Liquid Nitrogen n Chilled Water n Solvents / Acids n Liquid Ammonia n Methane n C2—C6 Hydrocarbons n Helium n Argon n Natural Gas VERSATILE, ROBUST DESIGNS PROVIDE PROVEN LONG LASTING PERFORMANCE SPOTLIGHT APPLICATIONS n Flare Gas at Well Sites n Hydrogen Lines n Green House Gas Emissions Monitoring n Sub-Metering within Universities, Hospitals, & Industrial Complexes n Landfill Gas for Compliance & for Carbon Credits n Industrial Pure Gases n Natural Gas for Boilers n Compressed Air Monitoring & Leak Detection n Aeration Control n Digester Gas n Chilled Water & Ultra High Purity Water n Air in Large Ductwork n Low Flow for Liquids n Nitrogen Blanket control n Air Flow to Heat Treatingfurnaces KEY PRODUCT FEATURES n Liquids, Slurries, Air, & Gases n Wide Dynamic Flow Ranges for Greater Applicability n Excellent Low Flow Sensitivity for Leak Detection Applications n Various Mounting Connections & Surface Finishes n Probe & In-Line Flow Sensors n No Moving Parts to Wear Out or Maintain/Replace n Dual Redundancy Sensors n Rugged Single Piece Insertion or Twin Tip Sensitive Probe Designs

Le contenu ci-dessus est extrait et converti automatiquement à partir du catalogue au format pdf. La mise en forme n'est donc pas conforme à celle du fichier pdf que nous vous proposons de recevoir par email.
